App
MapIT
By BenjaminH · v1.1.1
Rating
4.5
Reviews
92
downloads
100,000
Price
Free
Description

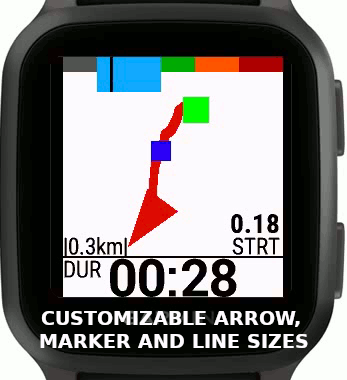

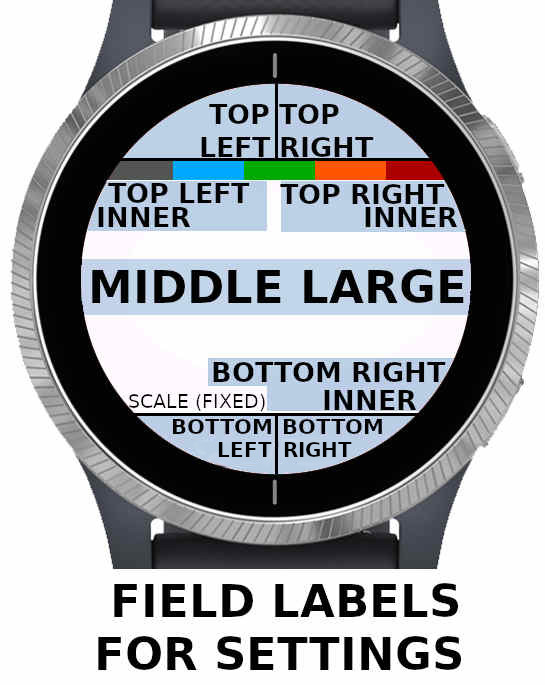

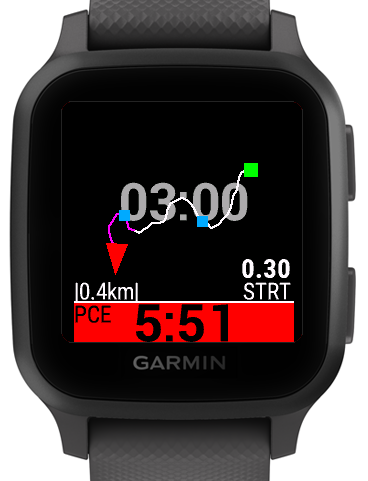

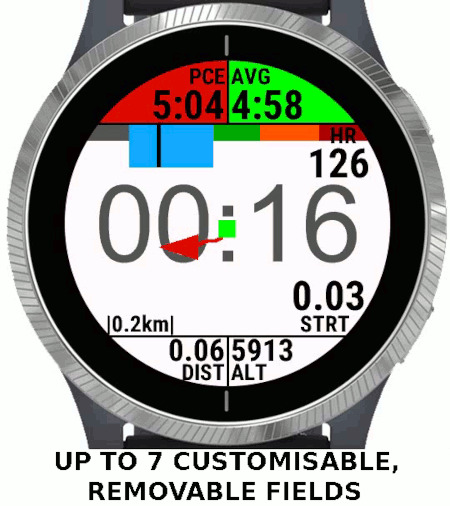

===== IMPORTANT! This is a Data Field not an App! See installation instructions at the bottom of description ===== A Data Field that shows your activity trail / track with customisable, removable fields. Useful for not getting lost when running, walking or biking in new areas, out on the trails or just if you like to see your route. Zoom in by pressing the pause button twice within 5s! If you find this Data Field useful and would like to thank me by way of a coffee or a cold one: paypal.me/BenjaminHpay This datafield only shows the path already travelled, it does not show pre-downloaded routes or provide waypoint navigation other than back to start. If you're looking for a data field that shows a route to follow for navigation, check out RouteIT here: https://apps.garmin.com/en-US/apps/3c80fecc-c7e5-484c-bb91-5ea49b7833d7 Features: - Activity start location as a green square - A simple line trail of your path since activity start (last minute of activity shown by red line)** - Your current position and bearing shown with a red arrow - A maximum of 10 laps shown by blue squares. (Due to memory constraints, after 10 laps, the oldest saved lap will be overwritten) - Up to 8* configurable datafields - Optional HR Zone graphic with current zone enlarged and heart rate in zone indicated by line on graphic - Current map scale in km (This indicates the distance shown for the entire screen width) - Optional background colour for speed/pace datafields (red if under pace, green if on and blue if greater than 10s above pace) - Different configuration options for 3 different activities (run,bike and other) - The map is North-up orientated and will rescale to keep the entire activity in-screen at all times - Zoom feature: pressing the pause button twice within 5 seconds will zoom in on the current location for a 20 second duration - Datafields can be hidden in settings by setting to "None" to make the map full-screen - Datafield only supports single field view - Miles or km units set automatically in watch settings *6 datafields on smaller devices such as Vivoactive 4s. Forerunner 735xt is limited to 5 due to screen shape and size ** A note on the track...memory constraints allow for a maximum of 200 GPS coordinates to be stored. These are continuously parsed to allow for data to be stored throughout the duration of the activity. This means that as an activity progresses, saved coordinates have a longer interval between them. For example, at activity start, coordinates are saved every 2s, at 15 minutes they are saved every 8s, and by two hours coordinates will only be saved every 1 minute. Thus, the line will lose detail over time, and may show as a sequence of straight lines when you zoom later in the activity, rather than a detailed curve. Configurable datafields include: - Current Pace - Average Pace - Average Speed - Current Speed - Lap Pace - Lap Speed - Current Cadence - Average Cadence - Elapsed Time - Lap Time - Distance - Lap Distance - Current Heart Rate - Average Heart Rate - Max Heart Rate - Lap Count - Altitude - Total Activity Ascent/Descent - Distance to Start - Clock - Battery Percentage Installation Instructions: This is a ConnectIQ Data Field not an app. After installation, navigate to the Garmin activity app that you want this datafield to display for, such as Run, Bike, Walk etc. Before starting the activity, open settings, select "Data screens", select the desired data screen you want to display this datafield on (screen 1, screen 2...). Set layout to 1 field, then select "Edit Datafield" and look for MapIT under the ConnectIQ fields.
What's New

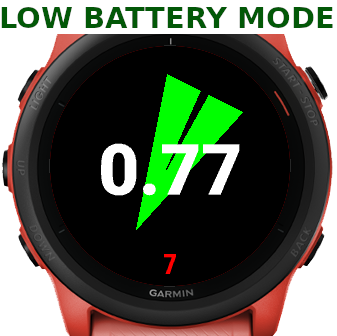

Found a bug, or want to give feedback and suggestions? Visit: https://forums.garmin.com/developer/connect-iq/f/showcase/254677/datafield-mapit Or use "Contact Developer button" on the left side of the screen. WARNING: It is not recommended to change data field settings while the data field is running. This may cause a reset of your custom fields configuration. v1.1.1 - added support for the Venu Sq 2 v1.1.0 - added support for following devices: - Forerunner 955/solar - Forerunner 255 - Forerunner 255s - D2 Mach 1 V1.0.14 - added support for following devices: - D2Air X10 - Epix 2 - Fenix 7 (all variations) - Venu 2 Plus - removed unused setting for hiding field labels V1.0.13 - update Garmin SDK version V1.0.12 - fix bug causing crash in low battery mode V1.0.11 - add support for Foreunner 55, Forerunner 945LTE and Descent Mk2 S V1.0.10 Addressing several ERA identified errors: - Fixed crash caused when max HR is out of defined zones - Fixed error handling for integer extraction from settings file - Fixed type incompatibility error for average HR calculation - Fixed error where location storage was improperly re-initialised - Fixed invalid value error for laptime calculations - Frequent error: Fixed unhandled exception for heading calculation V1.0.9 - Added support for CIQ 4.0 devices: Venu 2 and Venu 2S - Added field options for Max HR and Average HR - Improved arrow shape - Updated zoom screen: current position remains centered - Bug fix for Venu SQ HR Zones graphic - Code cleanup and optimisation V1.0.8 - With special thanks to Sem Reinhart for bug testing and providing feedback - Fixed crash caused by pressing "lap" button before activity start - Fixed settings file headers - Fixed colour highlighting error on Enduro V1.0.7 - Added customisable field on inside top left of track. - Added selection of lap time, lap distance, lap pace/speed, lap count to field options list -Added unit conversion for altitude between feet and meters (selected automatically using watch settings) - Battery percentage will now update to show real battery level before activity start -Elapsed time is now taken from activity timer and will therefore pause when activity pauses. V1.0.6 Identical to V1.0.7 except zoom function worked indefenitely when resuming activity instead of limited to 5s. V1.0.5 Heart Rate Zones updated from User Profile V1.0.4 Bug Fix: Middle field for Venu V1.0.3 Bug Fix: Clock option re-enabled in settings file V1.0.2 Changelist: - Added large, central data field behind track - Added optional HR Zones graphic - Added low battery mode activated at less than 10% battery, displaying back to start distance and direction as well as remaining battery life - Added option to customise arrow, marker and line size of track - Added blue highlighting for speed/pace data fields to show when pace is above set pace (red for below pace, green for on pace as before) - Optimised memory to allow for increased memory cache for coordinates of track (200 coordinate points stored) - Increased maximum lap markers to 10 - Added selection of cadence, average cadence and battery percentage to data field options list - Optimised colours for dark mode - Scaling increment set to 0.05km instead of 0.1km - Increased coloured portion of track to last 1 min of data instead of last 30s Version 1.0.1 - Added support for the Forerunner 735xt - Updated location of the values for the top and bottom data fields on 260x260 devices
Review
Review article coming soon.
